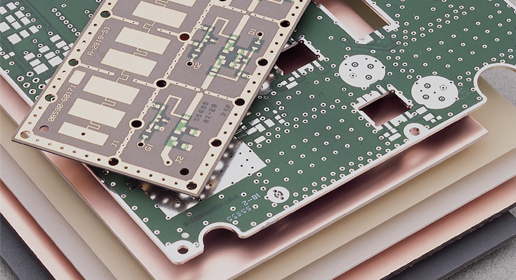

RT/duroid 5870 laminates offer high frequency with low dielectric constant (Dk). The randomly oriented microfibers in the PTFE composites result in exceptional Dk uniformity. With its low Dk loss, RT/duroid 5870 laminates are well suited for high frequency/broadband applications where dispersion and losses need to be minimized.

Features

  • Dk of 2.33 +/- .02
  • Dissipation factor of .0012 at 10GHz
  • Low moisture absorption
  • Isotropic

Benefits

  • Lowest electrical loss for reinforced PTFE material
  • Easily cut, shared and machined to shape
  • Resistant to solvents and reagents used in etching or plating edges and holes
  • Ideal for high moisture environments
  • Well-established material
  • Uniform electrical properties over wide frequency range

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the Laminate Properties Tool.

RT/duroid® 5870 RT/duroid® 5880
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Process) 2.33 +/- 0.02 2.20 +/- 0.02
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Design) 2.33 2.20
Dissipation Factor TAN @10 GHz (2.5 GHz) (Typical) 0.0012 0.0009
Thermal Coefficient εr -50°C to 150°C ppm/°C (Typical) -115 -125
Volume Resistivity Mohm (Typical) 2x107 2x107
Surface Resistivity Mohm (Typical) 2x107 3x107
Water Absorption D48/50% (Typical) 0.02 0.02
Thermal Conductivity W/m/°K (Typical) 50°C ASTM D5470 0.22 0.20
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) X 22 31
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Y 28 48
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Z 173 237
Peel Strength 1 oz (35um) ED Foil lbs/in. (N/mm) (Typical) 27.2 (4.8) 31.2 (5.5)
Density gm/cm3 (Typical) 2.2 2.2
Flammability Rating UL94 V-0 V-0
Lead-Free Process Compatible Y Y
PIM dBc Typical
