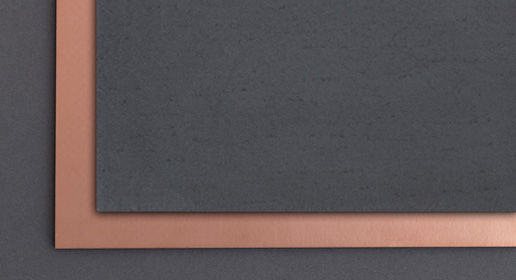

MAGTREX 555 materials are constructed from a proprietary, low loss, high resistivity ceramic filler and a high temperature thermoplastic matrix. This yields a system which is conformable, through hole via capable, and mechanically and electrically stable. These laminates feature a closely matched X/Y axis permeability and permittivity of 6 and 6.5, respectively, along with low magnetic and dielectric loss below 500 MHz. MAGTREX 555 high impedance laminates feature a low X, Y, Z CTE closely matched to copper for thermal reliability and are available in thicknesses from 40 to 260 mils. They are offered with or without copper cladding.

Features

  • Matched permeability and permittivity
  • High miniaturization factor
  • PTFE composite laminate
  • Low moisture absorption
  • Low dielectric and magnetic loss below 500MHz

Benefits

  • Substrate impedance matched to air
  • Antenna miniaturization with improved bandwidth
  • Flexible and conformable
  • Environmentally stable electrical performance
  • High antenna efficiency

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the Laminate Properties Tool.

MAGTREX® 555
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Process) εΓ = 6.5±0.5
μΓ = 6.0±0.2
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Design)
Dissipation Factor TAN @10 GHz (2.5 GHz) (Typical) See Data Sheet
Thermal Coefficient εr -50°C to 150°C ppm/°C (Typical) ~+1000
Volume Resistivity Mohm (Typical) 6.15x108
Surface Resistivity Mohm (Typical) 1.74x108
Water Absorption D48/50% (Typical) 0.25
Thermal Conductivity W/m/°K (Typical) 50°C ASTM D5470 0.47
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) X 22
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Y 25
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Z 25
Peel Strength 1 oz (35um) ED Foil lbs/in. (N/mm) (Typical) 3.1
Density gm/cm3 (Typical) 3.45
Flammability Rating UL94 N/A
Lead-Free Process Compatible Y
PIM dBc Typical
