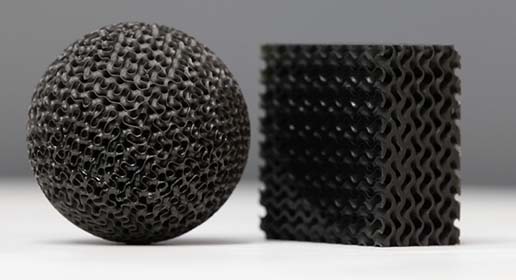

Radix Printable Dielectric materials are a ceramic-filled, UV-curable polymer designed for use with photopolymer 3D-printing processes like sterolithography (SLA) and digital light processing (DLP) printing. These materials and printing processes enable the use of high-resolution, scalable 3D-printing for complex RF dielectric components such as gradient index (GRIN) lenses or three-dimensional circuits. The 2.8Dk printable dielectric is designed to have low loss characteristics through millimeter wave (mmWave) frequencies and low moisture absorption for end-use applications. The materials are also available directly from our 3D-printing processing partners.

Features

  • Lowest loss UV-curable material at 24GHz for 3D printing
  • Low moisture absorption
  • Feature size capability down to 225um
  • Rigid mechanical properties for finely featured parts

Benefits

  • Enables new designs that cannot be made with traditional fabrication processes
  • Enables volumetric/3D circuits
  • Use of gradient index (GRIN) designs in a one-material system
  • Utilizes a scalable, high-resolution 3D-printing process, enabling end-use manufacturing of complex and finely featured dielectric parts

Downloads

Description Language File Type File Size
Data Sheet
Radix 2.8Dk Printable Dielectric Data Sheet English
161KB
(M)SDS/PSIS
Radix 28Dk Printable Dielectric Resin - SDS English
188KB
Resina dieléctrica imprimible Radix 2.8Dk Español
184KB
Radix 2,8Dk Druckbares Dielektrisches Deutsch
187KB
