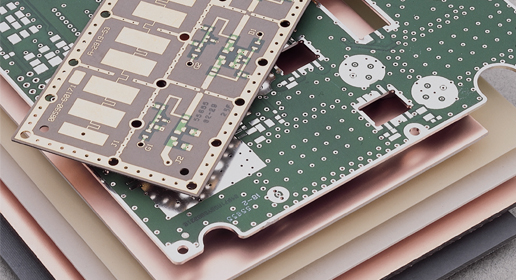

RT/duroid 5880 laminates has a low dielectric constant (Dk) and low dielectric loss, making them well suited for high frequency/broadband applications. Helping to maintain the Dk uniformity are the randomly oriented microfibers reinforcing the PTFE composites.
Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the Laminate Properties Tool.
| RT/duroid® 5870 | RT/duroid® 5880 | |
|---|---|---|
| Dielectric Constant, @10GHZ (2.5 GHz) Typical (Process) | 2.33 +/- 0.02 | 2.20 +/- 0.02 |
| Dielectric Constant, @10GHZ (2.5 GHz) Typical (Design) | 2.33 | 2.20 |
| Dissipation Factor TAN @10 GHz (2.5 GHz) (Typical) | 0.0012 | 0.0009 |
| Thermal Coefficient εr -50°C to 150°C ppm/°C (Typical) | -115 | -125 |
| Volume Resistivity Mohm (Typical) | 2x107 | 2x107 |
| Surface Resistivity Mohm (Typical) | 2x107 | 3x107 |
| Water Absorption D48/50% (Typical) | 0.02 | 0.02 |
| Thermal Conductivity W/m/°K (Typical) 50°C ASTM D5470 | 0.22 | 0.20 |
| Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) X | 22 | 31 |
| Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Y | 28 | 48 |
| Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Z | 173 | 237 |
| Peel Strength 1 oz (35um) ED Foil lbs/in. (N/mm) (Typical) | 27.2 (4.8) | 31.2 (5.5) |
| Density gm/cm3 (Typical) | 2.2 | 2.2 |
| Flammability Rating UL94 | V-0 | V-0 |
| Lead-Free Process Compatible | Y | Y |
| PIM dBc Typical |
View current applications of this product.
