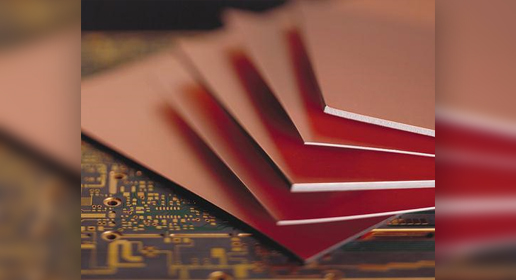

RT/duroid 6002 laminates are low loss materials that provide excellent high frequency performance. With excellent mechanical and electrical properties, these materials are reliable for use in multi-layer board constructions.

Features

  • Dielectric constant (Dk) of 2.94 +/- .04
  • Low thermal coefficient of Dk at 12 ppm/°C
  • Dissipation factor of .0012 at 10GHz
  • Low Z-axis coefficient of thermal expansion at 24 ppm/°C

Benefits

  • Low loss for excellent high frequency performance
  • Tight thickness control
  • In-plane expansion coefficient matched to copper
  • Low out-gassing; Ideal for space applications
  • Excellent dimensional stability

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the Laminate Properties Tool.

RT/duroid® 6002
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Process) 2.94+/-0.04
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Design) 2.94
Dissipation Factor TAN @10 GHz (2.5 GHz) (Typical) 0.0012
Thermal Coefficient εr -50°C to 150°C ppm/°C (Typical) 12
Volume Resistivity Mohm (Typical) 1x106
Surface Resistivity Mohm (Typical) 1x107
Water Absorption D48/50% (Typical) 0.02
Thermal Conductivity W/m/°K (Typical) 50°C ASTM D5470 0.60
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) X 16
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Y 16
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Z 24
Peel Strength 1 oz (35um) ED Foil lbs/in. (N/mm) (Typical) 8.9 (1.6)
Density gm/cm3 (Typical) 2.1
Flammability Rating UL94 V-0
Lead-Free Process Compatible Y
PIM dBc Typical
