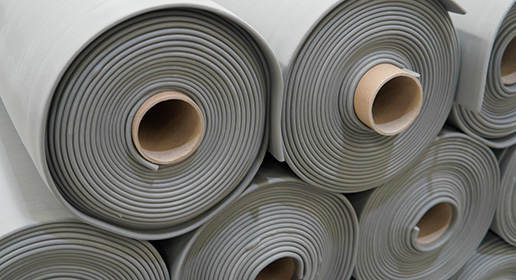

The BISCO RS-800 series is trusted in a variety of applications, for gasketing and gap filling, including electrical enclosures, lighting fixtures and transportation.

BISCO RS-800 products exhibit excellent flame resistance to UL94 V-0, a compression set of below 5%, as well as high tensile strength and elongation. These properties make BISCO RS-Series materials resilient, enabling them to outperform competitive materials in challenging environments where superior silicone performance is needed.

BISCO RS-Series materials are available in continuous roll form and four firmness grades — soft, medium, firm and very firm — to suit a wide range of applications. While the BISCO RS-800 series is a cellular silicone sponge alternative to BISCO HT-800, there are some differences between the two products. See sell sheets for a complete comparison of material properties.

Features

  • Meets UL94 V-0 and HB
  • Rated for constant use up to 205°C (401°F)
  • Rated for low temperature embrittlement point of -55°C (-67°F)
  • Seals against water at conditions as low as 20% compression
  • Available from 1.6mm to 20mm (0.063 to 0.750 in)

Benefits

  • Designed to withstand the harshest applications and most extreme conditions
  • Will not contribute to a fire due to flame resistance properties
  • Superior silicone properties enable consistent performance over long periods of time
  • Improved manufacturing efficiency through continuous roll die-cutting, enabling better yields
  • Our trusted technical service team is ready to help determine the best material solution for your application needs

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the BISCO® Product Properties Guide.

RS-870 RS-800 RS-820 RS-840
Minimum Thickness (mm) 2.40 1.60 1.60 1.60
Maximum Thickness (mm) 12.70 12.70 12.70 12.70
Density (kg/m3) 256 400 481 481
Compression Force Deflection (kPa) 34 79 155 155
Compression Set (%) <5 <5 <5 <5
Water Absorption (%) <5 <5 <5 <5
UL94 V-0 (Pass/Fail) Pass Pass Pass Pass
UL94 HF-1 (Pass/Fail) NA NA NA NA
Min Operating Temp (°C) -55° -55° -55° -55°
Max Operating Temp (°C) 200° 200° 200° 200°
