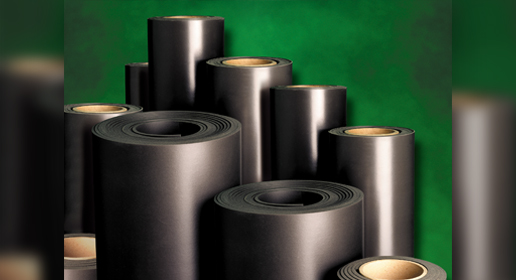

PORON 4790-92 polyurethane foam provides excellent protection for lower energy impacts. Softer and with a slow rebound, the material is conformable yet returns to its original shape, allowing for long-term performance.

Features

  • Thickness range of .53 to 12.7 mm (.021 to .5 in.)
  • Density range of 144 to 480 kg/m3 (9 to 30lb/ft3)
  • Conformable open cell material

Benefits

  • Long lasting and durable
  • Great for gap filling and gasketing or sealing applications
  • Distributes low energy impact

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the PORON® Polyurethanes Product Properties Guide.

4790-92-09 4790-92-12 4790-92-15 4790-92-20 4790-92-25 4790-92-30
Thickness (Min) (mm) 0.50 3.18 3.18 2.06 0.53 0.30
Thickness (Max) (mm) 1.00 10.80 12.70 1.04
Density ASTM D 3574 Test A (kg/m3) 144 192 240 320 400 480
Thickness Tolerance (%) +/-10% +/-10% +/-10% +/-10% +/-10% +/-25%
Compression Force Deflection Typical Value @ 25% (kPa) 1.70 10.0 14.0 22.0 37.0 55.0
Compression Set (70°C) Max Value (%) 10.0 10.0 10.0 10.0 10.0 10.0
Tensile Strength (kPa) 83 103
Tensile Elongation % Typical Value ASTM D 3574 (%) 150 120
Tear Strength (kN/m) 0.4 0.5
Temperature Resistance: Recommended Constant Use (°C) 90° 90° 90° 90° 90° 90°
Temperature Resistance: Recommended Intermittent Use (°C) 121 121° 121° 121° 121° 121°
Temperature Resistance: Embrittlement (°C) -20° -36° -36° -12° -12° -36°
