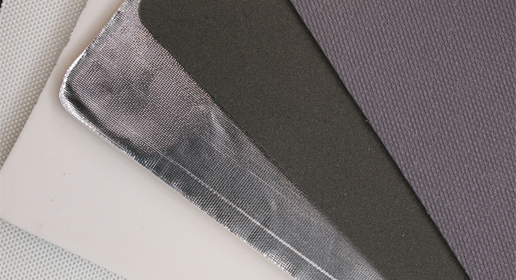

BISCO® RF-120 Reflective Silicone Heat Shield

BISCO RF-120 heat shield is a reflective foam designed to aid in heat management applications. RF-120 foam both insulates against heat and reflects it away. This specialty silicone composite consists of a smooth aluminized fabric and our lower density BF-1000 foam. RF-120 foam is widely used in commercial, professional and military vehicles.

Features

Available thicknesses from 0.098 to 0.197 in. (2.5 to 5 mm)
Reflective silicone heat shield grade
FMVSS-302 flammability rated

Benefits

Both insulates against and reflects heat
Combines the strength of aluminized fabric with the flexibility and softness of BF-1000 foam

Properties

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the BISCO® Product Properties Guide.

	HT-1500	FPC	RF-120	IF-200
Minimum Thickness (mm)	0.79	1.59	2.50	5.00
Maximum Thickness (mm)	3.18	6.35	5.00	N/A
Density (kg/m³)	N/A	513	208	208
Compression Force Deflection (kPa)	N/A	N/A	N/A	N/A
Compression Set (%)	25	N/A	N/A	<5
Water Absorption (%)	N/A	N/A	N/A	N/A
UL94 V-0 (Pass/Fail)	N/A	N/A	N/A	N/A
UL94 HF-1 (Pass/Fail)	N/A	N/A	N/A	N/A
Min Operating Temp (°C)	-62°	-55°	N/A	N/A
Max Operating Temp (°C)	218°	200°	N/A	N/A

Downloads

Description	Language	File Size
Data Sheets
BISCO® RF-120 Heat Shield Specialty Silicone Foam	English	133KB
Product Information
BISCO® Silicones General Industrial Product Availability	English	198KB
Technical Information
BISCO Silicones Shelf Life, Storage & Handling	English	580KB
BISCO® 硅胶的保质期、存储和处理	中文	1MB
BISCO Silicones Chemical Resistance Guide	English	116KB
Silicone Adhesive Liner Removal Process of BISCO Silicones	English	424KB
BISCO Silicones Environmental Bulletin	English	2MB
Brochures
BISCO Material Selection Guide	English	8MB
49CFR238 & EN45545 Rail Solutions Brochure	English	6MB
(M)SDS/PSIS
BISCO® RF-120 Reflective Silicone Heat Shield - PSIS	English	170KB

Applications

View current applications of this product.
