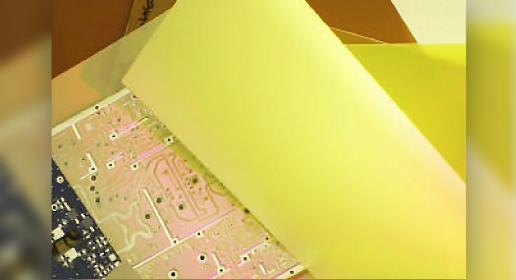

AD350A PTFE, woven fiberglass, ceramic filled specialty material has been developed to provide high thermal conductivity and low CTE for use in higher power designs. Where temperature extremes are normal and heat rejection is a primary consideration, AD350A continues to perform.

Features

  • Well controlled dielectric constant of 3.50 +/- .05
  • Low insertion loss tangent of .003 at 10 GHz
  • Low Z-axis thermal expansion of 35 ppm/°C
  • Larger Panel Sizes Available

Benefits

  • Superior plated through-hole (PTH) adhesion
  • Excellent heat dissipation and management
  • High consistency performance

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the Laminate Properties Tool.

AD250C™ AD255C™ AD300D™ AD350A™
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Process) 2.50+/-0.04 2.55+/-0.04 2.97, 3.03 +/-0.05 3.50+/-0.05
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Design) 2.52 2.60 2.94, 3.03 3.54
Dissipation Factor TAN @10 GHz (2.5 GHz) (Typical) 0.0013 0.0013 0.0021 0.0033
Thermal Coefficient εr -50°C to 150°C ppm/°C (Typical) -117 -110 -73 -57
Volume Resistivity Mohm (Typical) 4.8x108 7.4x108 1.7x108 1.5x109
Surface Resistivity Mohm (Typical) 4.1x107 3.6x107 5.1x107 9.5x107
Water Absorption D48/50% (Typical) 0.0422 0.0322 0.04 0.1022
Thermal Conductivity W/m/°K (Typical) 50°C ASTM D5470 0.33 0.35 0.37 0.44
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) X 47 34 24 18
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Y 29 26 23 18
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Z 196 196 98 63
Peel Strength 1 oz (35um) ED Foil lbs/in. (N/mm) (Typical) 14.8 (2.6) 13.6 (2.4) 18.3 (3.2) 14.7 (2.6)
Density gm/cm3 (Typical) 2.28 2.28 2.23 2.43
Flammability Rating UL94 V-0 V-0 V-0 V-0
Lead-Free Process Compatible Y Y Y Y
PIM dBc Typical -164 -164 -159 -164
